1980 Pontiac Turbo Trans Am: The 301 V8 That Tried to Keep Muscle Alive

The 1980 Pontiac Turbo Trans Am was a response to shrinking engine options, and its unusual turbocharged V8 gave the car more torque than Pontiac’s naturally aspirated 301. But a mandatory automatic, uneven period test results and a short production run kept the turbo model from matching the pace of the outgoing 400-powered cars. This Starlight Black example, with its original engine and transmission, captures that complicated handoff.

Pontiac built 22,176 Trans Ams with the turbocharged 301 in 1980. It was the first model year since the Trans Am’s 1969 debut when buyers couldn’t order an engine of at least 400 cubic inches. The turbo version lasted through 1981, and the 301 became the final V8 designed and built in-house by Pontiac.

How the 301 became a turbo V8

Pontiac introduced the 301 in 1977 as a lighter, more economical V8. Its 4.0-inch bore and 3.0-inch stroke produced 302 cubic inches, but Pontiac called it a 301 to avoid confusion with Ford’s familiar 302. Compared with the older Pontiac 350 design, thinner cylinder walls and a lighter crankshaft cut 136 pounds. By 1980, the four-barrel W72 version made 155 bhp and 240 lb-ft.

The turbo project grew from a low-emissions conversion of a Firebird 350 developed as a student project at the General Motors Institute in Flint. Professor Jim Lyons showed the work to Pontiac chief engine engineer Leo Hilke. Pontiac announced its turbocharged 301 at the end of 1978, drawing on earlier turbo experience elsewhere in the company, including the Corvair Monza Spyder and Oldsmobile Jetfire. Buick had also put a turbocharged 231-cubic-inch V6 into production for 1978, rated at 165 bhp.

Pontiac’s turbo program began with a student project at the General Motors Institute. Image provided by General Motors.

The pressure to downsize was already reshaping the Trans Am’s engine lineup. Fuel economy standards took effect for the 1978 model year with an 18 mpg fleet target, and Pontiac stopped building its 400 after that year. Some 400s remained available in 1979 from stockpiled supply until spring; an Oldsmobile 403 became the standard engine. Neither was offered for 1980, while California cars used a Chevrolet 305 to meet the state’s stricter targets.

The Turbo Trans Am’s LU8 engine used a Garrett AiResearch TBO-305 draw-through turbocharger, fed by a modified Rochester Quadrajet four-barrel carburetor. The system produced 9 psi of boost. Pontiac lowered compression to 7.6:1 so the engine could run on regular unleaded, and fitted a Delco electronic spark control unit with a knock sensor to retard timing when it detected detonation. The block, pistons and oiling system were also upgraded over the standard 301.

The LU8 combined the 4.9-liter V8 with a single Garrett AiResearch turbocharger and modified Quadrajet carburetor. Image provided by General Motors.

Pontiac rated the turbo engine at 210 bhp at 4,000 rpm and 345 lb-ft at 2,000 rpm, using SAE net figures. That was a substantial rise over the naturally aspirated W72 301, though the last 400 was rated at 220 bhp. The turbo option cost $350 on a Trans Am and $530 on a Formula.

Buyers had no gearbox choice: the turbo came only with a THM350 three-speed automatic, a 3.08:1 rear axle and air conditioning. No 1980 Firebird could be ordered with a manual transmission. The turbo also wasn’t certified for sale in California that year. Its off-center hood bulge made room for the turbo housing, while three boost lights along the rear edge illuminated in sequence as boost rose. Those lights were standard on Pace Cars and available as option UR4 on other turbo cars from early 1980.

Torque on paper, mixed results on the road

Period performance tests varied noticeably. The quickest reported 0-to-60 mph time was 8.0 seconds, with quarter-mile runs in the mid-16-second range and a 116 mph top speed. Other tests took 9.0 seconds to reach 60 mph and recorded quarter-mile times around 17 seconds. Some testers also reported detonation under hard acceleration despite the knock-control system.

The transmission is an obvious part of the explanation. A 1979 W72 400 with a four-speed manual ran the quarter-mile in the low 15s, leaving the turbo car behind by more than its 10-bhp rating gap might suggest. Chevrolet’s 1980 Camaro Z28 made 190 bhp from a 350-cubic-inch small-block and came standard with a four-speed manual. Even with 20 bhp less than the Pontiac, a manual Z28 could outrun the automatic Turbo Trans Am.

Other performance options show how unsettled the market had become. Ford’s quickest 1980 Mustang was the Cobra, with a 2.3-liter turbo four rated at 132 bhp; the Mustang’s 255-cubic-inch V8 made 119 bhp. Outside California, the Corvette offered engines rated at 190 or 230 bhp. The Datsun 280ZX Turbo arrived for 1981 with a 180-bhp rating.

A short-lived chapter in Trans Am history

The Trans Am began in March 1969 as a performance and appearance package for the Firebird, priced $725 above the standard car. Pontiac licensed the name from the Sports Car Club of America’s Trans-American sedan series for $5 per car. The standard 400-cubic-inch Ram Air III V8 was rated at 335 bhp gross, exceeding the series’ 305-cubic-inch displacement limit; none of the 697 first-year cars raced in the series.

The second-generation Firebird arrived in 1970 and remained in production through 1981. Its engineering high point came with the 1973 and 1974 Super Duty 455 V8. After Smokey and the Bandit reached theaters in 1977, Trans Am sales surged, with more than 117,000 built for 1979. Later generations followed in 1982 and 1993, and the final Trans Am left production in 2002.

Pontiac had planned to carry the turbo engine into the third-generation Firebird. The 1982-to-1984 cars were designed with the same offset hood bulge, and early promotional photos showed Turbo Trans Am decals and badging. Before production, however, GM chose to standardize engines across its divisions. Pontiac closed the 301 line to free tooling and capacity for the Iron Duke four-cylinder, which shared some of that capacity and was needed in greater numbers. Pontiac built its last V8 in March 1981.

The change came amid a steep sales decline: Firebird volume fell from more than 210,000 in 1979 to 107,340 in 1980 as the economy weakened and fuel concerns returned. The 1980 turbo also lacked California certification, its test results were inconsistent, and it began the 1981 model year on hold. The 1982 Trans Am instead used a Chevrolet-built 5.0-liter V8 rated at 150 bhp, or 165 bhp with throttle-body injection. Pontiac-built V8s never returned to its cars.

The 1980 example

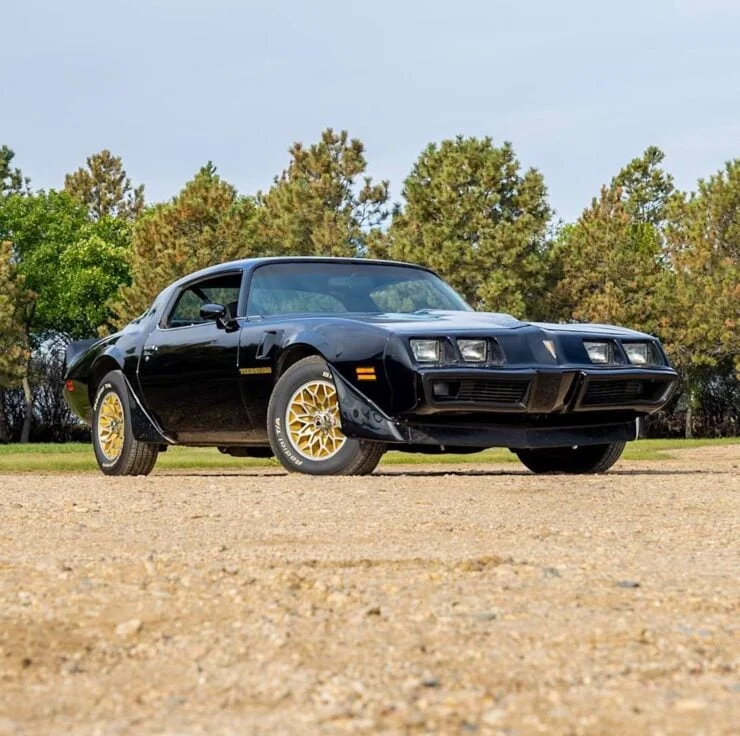

This car wears Starlight Black paint, gold decals, the hood’s phoenix graphic and gold Snowflake wheels. Its turbocharged 4.9-liter V8 and three-speed automatic are both described as matching-numbers components. The car also has dual exhaust, power steering, power brakes and air conditioning.

The Starlight Black car has gold graphics, a hood phoenix and gold Snowflake wheels.

The cabin has black front bucket seats, a center console with storage and the familiar engine-turned dashboard trim. Dakota Digital gauges have replaced the original instruments. The sale includes the owner’s manual and a fitted car cover.

The black interior includes bucket seats, a center console and replacement Dakota Digital gauges.

The car is scheduled to cross the auction block with Mecum in late October. Its appeal rests on the details: an original turbocharged drivetrain, a distinctive factory configuration and a brief place in Pontiac’s transition away from its own V8s. The automatic is central to the car’s period performance story, while its matching-numbers status gives collectors a clear point of reference.

Images courtesy of Mecum.
